The intelligence
inside fast charge.

Two purpose-built building blocks. EVPLC communication and EVCB charger control, designed for the heart of DC charging.

Explore DC controllers Meet EVPLC + EVCB
DC CONTROLLERSEVPLC + EVCBENGINEERED TO CONNECT

A complete control platform

Two modules.
One vision.

DC fast charging brings high-power conversion, vehicle communication and control together in one coordinated system.

PhilbrickEV EVPLC and EVCB controller modules bring essential intelligence and communication building blocks into your DC charger development.

Talk to our engineering team
PhilbrickEV EVPLC powerline communication module01 / COMMUNICATION

VEHICLE-TO-CHARGER COMMUNICATION

EVPLC

A high-performance powerline communication module engineered for critical communication between electric vehicles and charging infrastructure.

  • EV-to-charger communication
  • CCS charging integration
  • Designed for reliable data exchange
View EVPLC datasheet

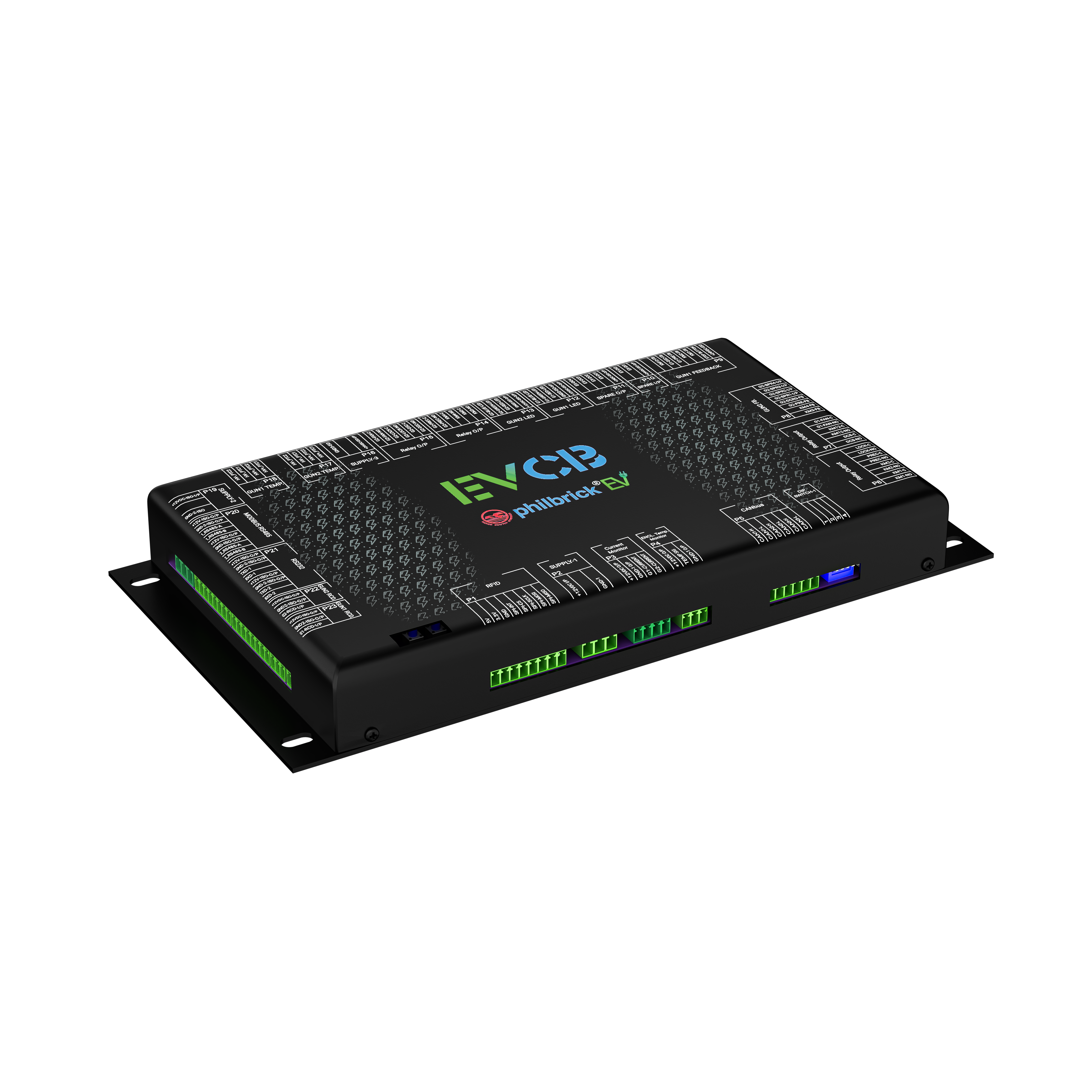

PhilbrickEV EVCB DC charger control unit02 / CHARGER CONTROL

DC CHARGER CONTROL UNIT

EVCB

The control core for DC charging—bringing charger functions together with clear monitoring, system coordination and integration.

  • Central charger control
  • EVPLC system coordination
  • Built for DC charger integration
View EVCB datasheet

Configure your controller

Choose a module.
See its price.

Select the DC controller module that fits your charger architecture.

PhilbrickEV EVSE Powerline Communication modulePHILBRICKEV / DC CONTROLLER
01
Choose a DC controller module
Your selected module priceLoading price…EVSE Powerline Communication
Enquire about this module

EVSE Powerline CommunicationSelected DC controller module. Confirm system architecture and module compatibility with PhilbrickEV.

Engineering reference / EVPLC + EVCB

The control layer,
specified.

Key ratings transcribed from the supplied controller datasheets. Values apply to the named controller module.

EVPLC / power & platform

Main CPU
Texas Instruments AM62x
PLC chipset
Qualcomm QCA7006AQ
Supply voltage
8–15 V DC
Communication
CANbus FD / 2.0
CANbus ID
Configurable via DIP switch
HV safety
Galvanic isolation

EVPLC / interfaces & physical

Debug interface
UART
LED indicators
3.3 V, 5 V, PLC and CANbus
Dimensions
15 × 11 × 3 cm

EVCB / power & charging

Input supply
+9 to +30 V DC at 3 A
Gun configuration
Single / dual, DIP selectable
Power range in datasheet
20–240 kW
Module detection
Automatic dynamic
Current monitoring
Integrated high-precision monitoring
Output feedback
Full status loop

EVCB / communications & control

Interfaces
CAN FD, CAN 2.0
HMI interface
RS232
Connectivity
4G, Ethernet, Wi-Fi
Authentication
RFID / NFC (PN532)
Digital I/O
Multiple, configurable
Metering
Class 0.5 (Modbus)
Firmware / commissioning
Secure OTA / single-file configuration

EVCB / sensing & physical

Gun temperature sensors
4 × PT1000
LED indication
Dual RGB (7 A)
Operating environment
Ambient, enclosure
Dimensions
32 × 14 × 4 cm
