Intelligence
in every charge.

Controller technology that brings dependable logic, communication and a considered charging experience to AC systems.

Talk controller technology Explore power classes
AC CONTROLLERS3.3 / 7.2 / 11 / 22 kWREADY TO INTEGRATE

The intelligence inside

Control that
connects.

Every great charger needs a great control system. PhilbrickEV AC controller solutions are designed to help charger manufacturers bring their hardware and charging experience together.

With power classes across common AC charging applications, build an architecture shaped around your product—not the other way around.

Discuss integration
01 / AC CONTROL3.3 kW

For compact charging applications.

02 / AC CONTROL7.2 kW

For versatile everyday systems.

03 / AC CONTROL11 kW

For three-phase charger designs.

04 / AC CONTROL22 kW

For higher-power AC architectures.

Configure your controller

Choose a model.
See its price.

Select a controller power class and use case to see your configured price.

Illustration of the PhilbrickEV 3.3 kW AC controllerPHILBRICKEV / AC CONTROLLER
01
Choose controller power
02
Choose installation type
Your selected controller priceLoading price…3.3 kW · Private
Enquire about this model

3.3 kW / compact AC chargingIllustrative concept image. Confirm the selected controller's board revision and charger compatibility with PhilbrickEV.

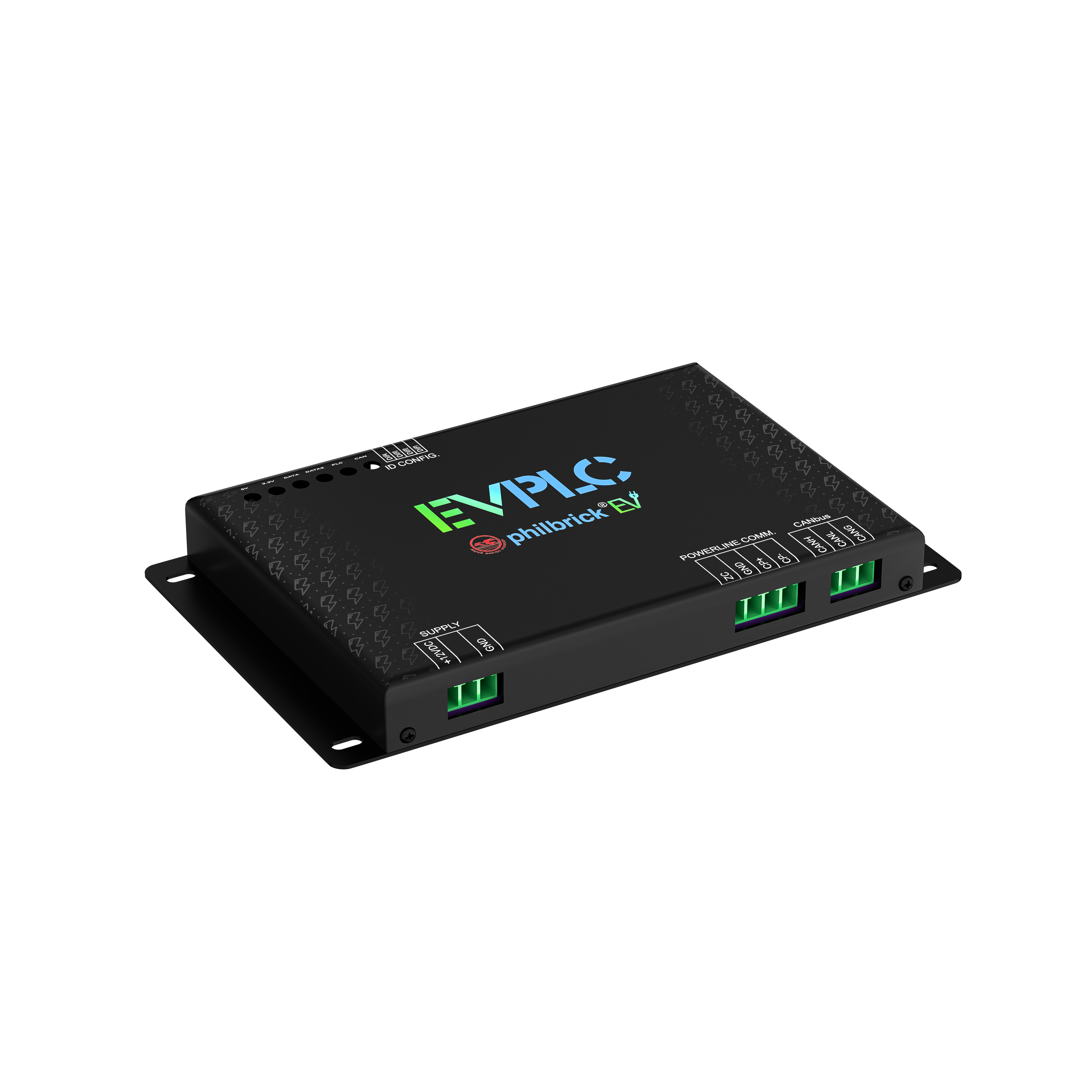

PhilbrickEV controller module for EV charger integrationCONNECTING CONTROL TO CHARGING.

Designed for the people who build

Hardware is
only the start.

Bring charger control into a wider technology platform. From embedded control to connected communications, the right building blocks help bring your product to life.

  • Support your AC charger architecture
  • Power classes from 3.3 to 22 kW
  • Connect charging hardware and intelligence
Meet the technology

Integration reference / AC control

Designed around
your system.

Choose a power class to explore its configuration reference. Values are product-level references, not a guarantee of PhilbrickEV board specifications.

Select a controller model

3.3 kW AC Controller

Selected model specifications

Controller class
3.3 kW
Input voltage
230 VAC ±10% (P+N+PE)
Frequency
50 Hz / 60 Hz
Number of connectors
1 connector (maximum 3.3 kW)
Connector type
Industrial socket / Bharat AC, IEC 60309
Output configuration
3.3 kW, 16 A × 1
Protection
Over-current, over-voltage, under-voltage and surge protection
Supported display
Not specified
Energy measurement
On-board Class 1 energy metering
Additional support
RFID
Communication protocol
OCPP 1.6J
Network configuration
Wi-Fi / GSM (2G fallback)
Firmware update
OTA (over-the-air)
Standards
IEC 61851, IS 17017, IEC/EN 61000

AC Controller Datasheet
